Split multi - point laser welding head

Split multi - point laser welding head

Product introduction:Spectral element,One-dimensional beam splitting element,Other special welding head.
  • technical parameter
  • white paper

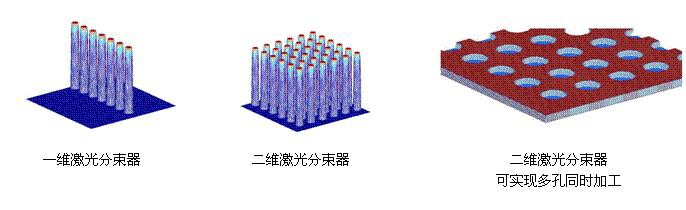

        Spectral element:

        Using a diffraction element, a laser beam is converted into a plurality of beamlets, which can be arranged according to the application requirements.

        One-dimensional beam splitting element:

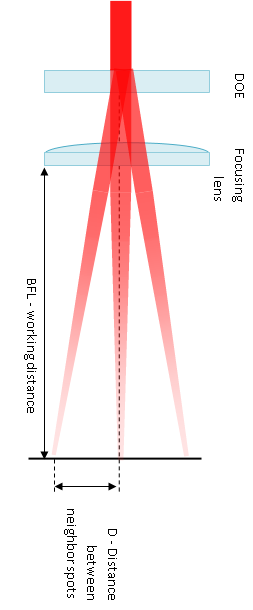

        The splitting element divides the input laser light into a plurality of beams, and the sub-beams are set at an interval(S.A.).

         In the short beam into the focus system, the sub-beam focused to the work surface, focusing spot spacing a, the width of the working width b.


        Other special welding head:

       Flat top spot


        Square spot


        Square flat top spot
