Hand-held laser fiber welding lens

  Product deion:

    The use of air-cooled way to solve the traditional hand-held welding head fever, to achieve more than 200W continuous work; protective gas and focus laser coaxial output to facilitate metal welding; welding head comes with control switch to facilitate control of laser output; D80 and SMA- 905 interface is optional, suitable for fiber-coupled semiconductor laser and YAG laser welding system.

  Main applications:

    1.Mold repair

    2.Plastic and other non-metallic cladding

    3.Circuit boards, aluminum wire welding

    4.Proofing parts are pre-welded

    5.Advertising plate

  Main feature:

    1.D80, SMA-905 fiber interface

    2.With fiber optic protection protection tail sets

    3.Support 200W power continuous welding

    4.30mm diameter, easy to hand

    5.Cooling + protection gas dual channel airway

    6.The built-in button controls the laser output

    7.With gem ring anti-reflective protection optional

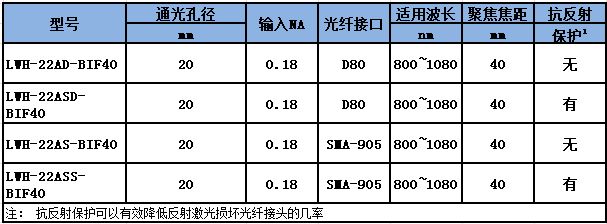

  Product specifications:

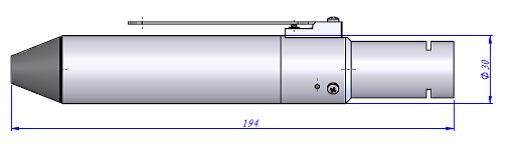

  Product size (Unit: mm):
